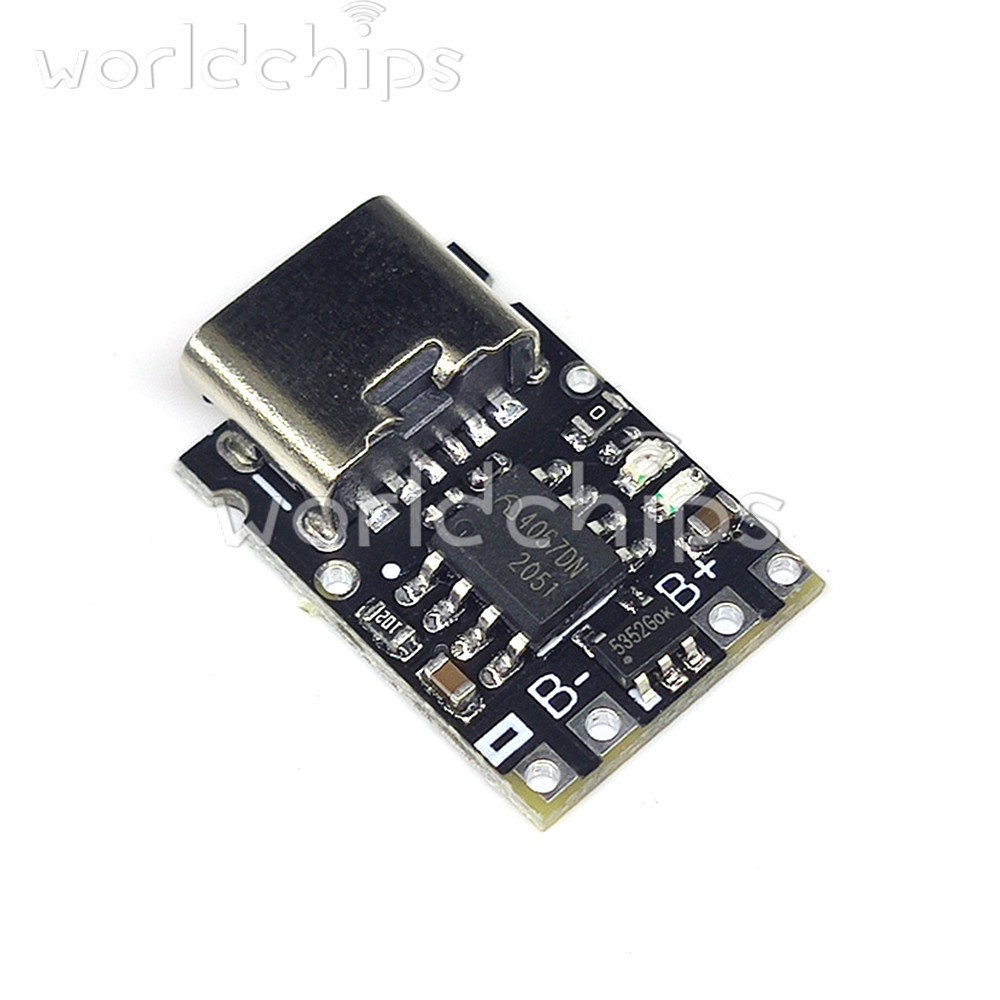

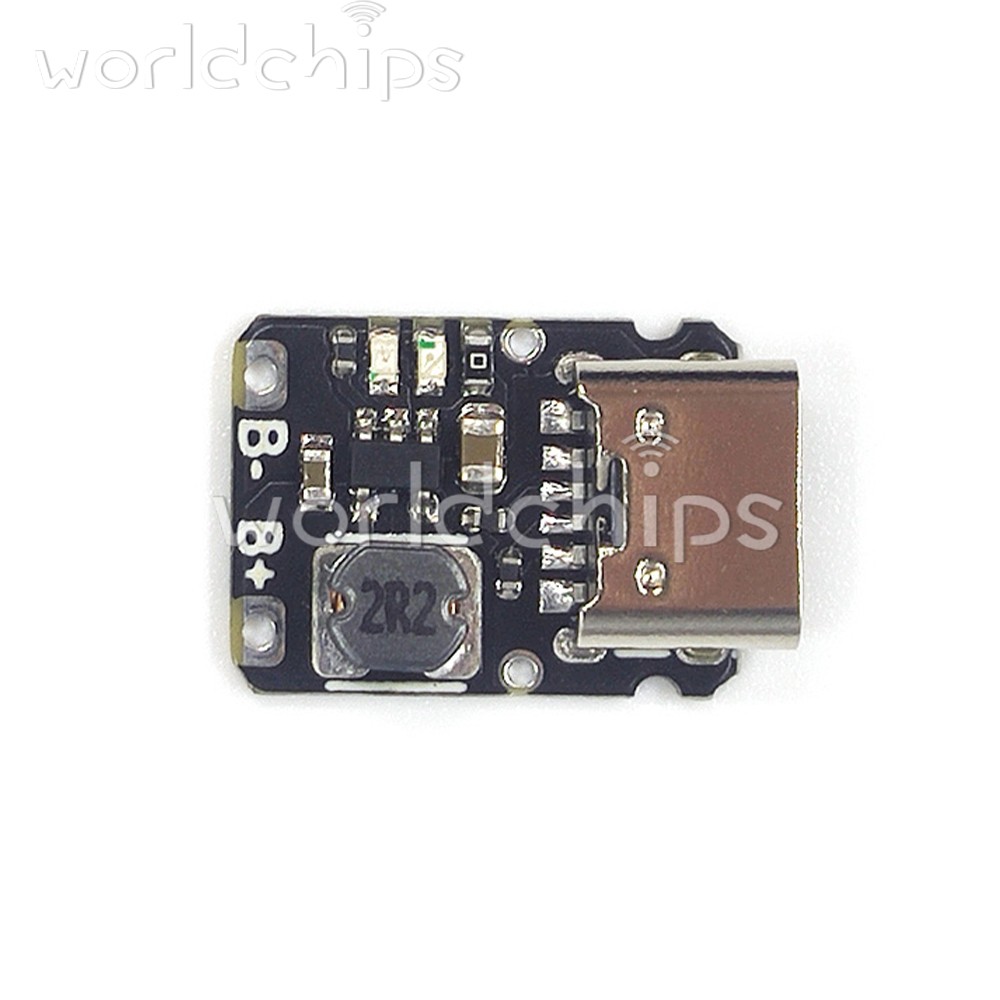

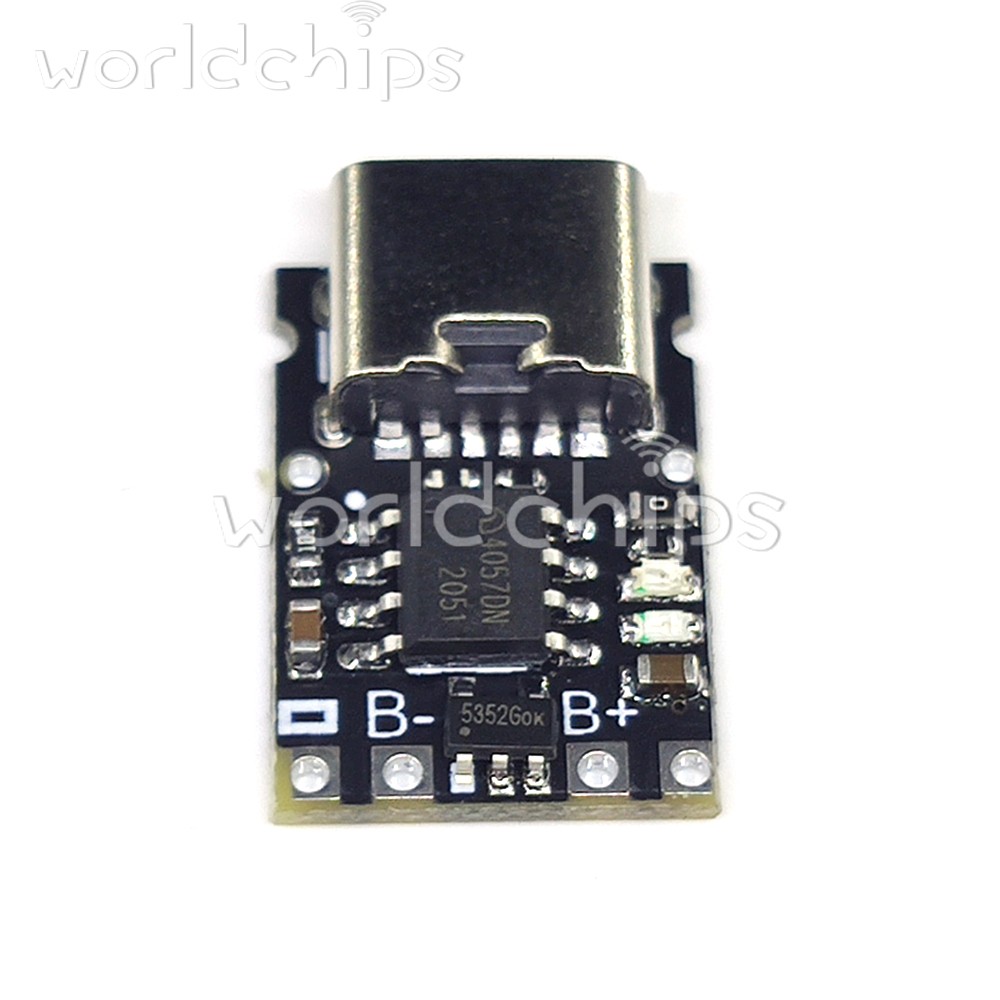

10pcs 5V 1A Charge Discharge module 18650 Lithium Battery Charging Module Type-c
$ 11.43
Description
Home Arduino Module Sensor Chips About Us Product Features: 1. Compact size: Dimensions only 16*12*4.4mm. 2. Operates at 4.5-5.5V, compatible with single-cell lithium batteries (parallel connections unrestricted), maximum 1.2A. Provides stable 1A current under specified conditions. 3. Compatible with various 3.7V lithium batteries, including 18650 and polymer cells. 4. Features overcharge and over-discharge protection. Over-discharge cutoff at 2.9V, charge cutoff at 4.2V! 5. Automatically switches to output mode when no external input voltage is present. Supports low-current output at 5V, delivering approximately 450mA. When outputting 1A, voltage fluctuates between 4.9V and 4.5V based on battery capacity. 6. Automatically switches input/output: Charges battery when external voltage is present; discharges otherwise. Charging: Green LED flashes; full charge: steady green. Discharging: No LED on idle; blue LED on under load. Standby power consumption: approx. 0.8mA. Product Specifications: Input/Output: 5V Current: 1A (max 1.2A) Battery Type: 3.7V Lithium Battery Interface: Type-C Port (Input/Output Capable) Charging Current: Max 5V 1.2A Output: Suitable for Low Current Applications Switching: Auto Switching / Permanent Output Indicator Lights: Input/Output Display Dimensions: 4.2V/4.35V Approx.: 16.8*12*4.4mm; 5V: Approx. 16*12*4.4mm Applications: DIY lithium battery charging, small appliance modifications, adding charging ports to tablets, low-power electrical devices Usage Instructions: Connect the module to the positive and negative terminals of a 3.7V lithium battery for operation. The module features built-in overcharge and over-discharge protection; a protection board can also be added to the lithium battery. The Type-C port, solder pads, and rear reserved input/output interfaces are identical sets. Their circuits are directly interconnected, making all three sets functionally equivalent. Wire according to markings (physically connected where colors match). Input can be via Type-C port or direct wiring. Batteries must be connected in parallel, not series. Wires require soldering and should not be too thin to ensure proper operation. Reverse battery connection is prohibited. Function Overview: * When charging current drops to 100mA after reaching final float voltage, the charging cycle automatically terminates. * Maximum charging current: 1.2A. Under proper usage and sufficient power supply, stable charging above 1.1A is achievable. * When battery voltage falls below 2.9V, pre-charging at 200mA commences. * Features a protection board with overvoltage, over-discharge, and overcurrent protection. Over-discharge threshold: 2.9V. * Requires initial power connection to activate the protection board when first using the battery. Precautions: * Do not reverse the battery connection; doing so will burn the board. * Connect the charger before attaching the battery to verify the charging indicator light functions correctly. * Cables must not be too thin, as this may cause insufficient power delivery. All connections must be soldered. * Batteries may be connected in parallel, not in series. Only 3.7V lithium batteries are compatible, with a full charge voltage around 4.2V. * This product is not intended for use as a power bank. Its power output is relatively low, maxing out at 4-5 watts. It also lacks charging protocols. This may cause compatibility issues with certain smartphones. Therefore, when modifying power banks for use with this product, our store assumes no responsibility for any resulting issues with specific mobile devices. FAQ 1. What is this product used for? Answer: Low-power devices, backup power circuits, DIY modifications. 2. Is the input/output switching seamless? Answer: Switching requires approximately 1-2 seconds. Product Listing: 10X Module Payment Shipping Refund Payment Customer satisfaction is our top goal. We believe our items are so outstanding. All products are quality checked. They are new and in good condition when shipped to our customers. We are convinced you will be happy with your Purchase. If product is defective or damage upon arrival, or wrong product shipped, please contact us immediately. Returns accepted within 30 days of delivery date and item must be in original new condition. Please contact us first if you have any problems/questions/concerns. We will be happy to resolve any issues you may have in a cordial and friendly manner. Shipping Please fill in the correct address and zip code and I will ship quickly! Refund If the item is defect when you receive it or you are not satisfied with it, please return it within 30 days for a replacement or money back. But the items must be back in factory condition. Please contact us and double check the return address before you return it.
