12V DC High Voltage Generator Arc Ignition Boost Coil Inverter

Description

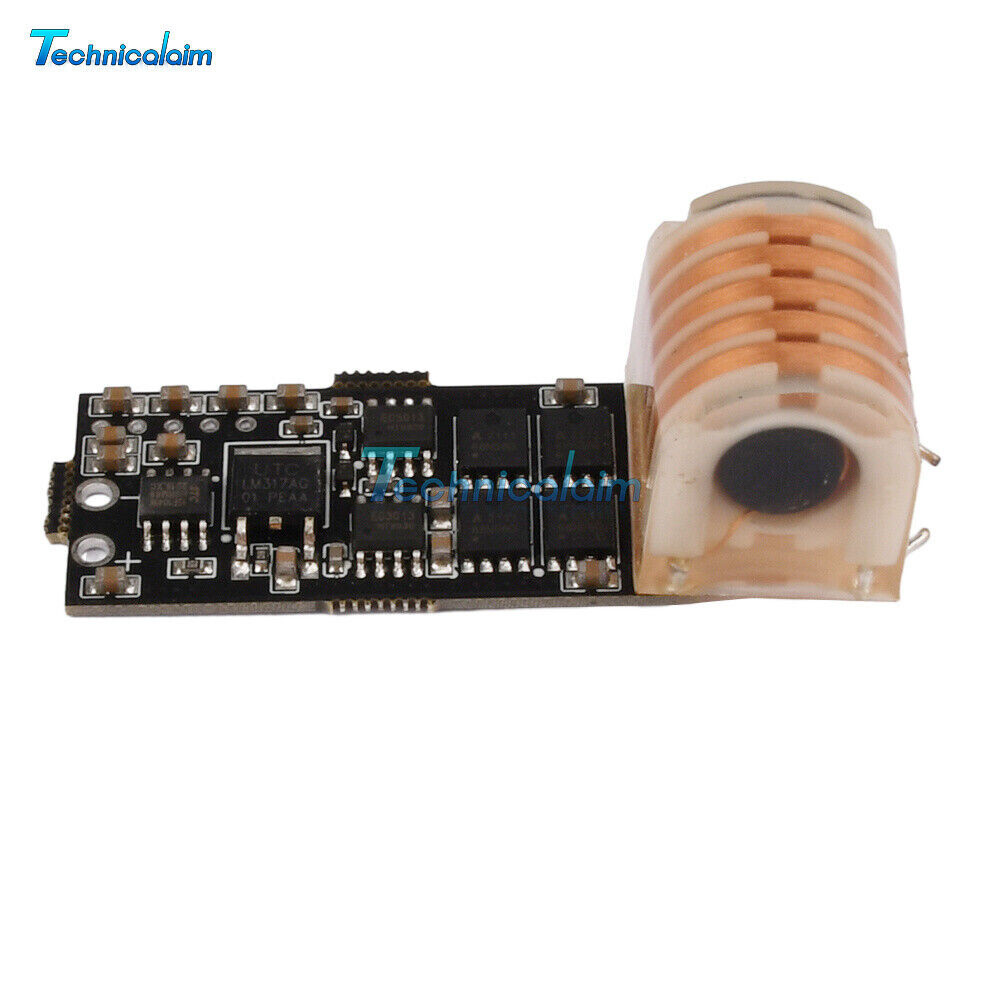

Sophisticated product, please handle with care; quality first, credit upmost; Your satisfaction is our pursuit;The strength of technology decide the quality of technology. if you have any problem,pls contact with us. DC12V High Frequency High Voltage Generator Inverter Boost Arc Ignition Coil US Product features: 1. This driver board adopts H-bridge 4-transistor MOS variable frequency resonant topology technology, with high driving efficiency and high power; 2. Low heat generation without the need for a radiator; 3. The arc striking distance is 1cm~2cm, which allows for direct arc striking without the need for arc pulling; 4. The orange yellow flame arc can melt copper wire at a temperature of around 1200 degrees, with a wide range of applications; 5. The arc temperature is high, which can directly melt fine copper wires, iron wires, sparks, and ignite various gases, alcohol, gasoline, diesel, plastic, paper, etc. Specification parameters: Power supply voltage range: 7-15V Suggested power supply voltage: 12V Full load power: 50W Input current:<2A Output voltage: 15KV~20KV Output current: 5mA~15mA Circuit board size: 2 * 4.3cm Overall size: 2 * 6cm Overall height: 2.5cm Instructions for use: Arc striking distance of 1cm~2cm (direct arc striking, no need to pull the arc. If the arc has already started but is not obvious and cannot be ignited, the electrode distance can be brought closer) When the continuous working time exceeds 5 minutes at 9V or above, a fan needs to be installed next to the transformer, This product has no casing (the transformer part has been sealed), please pay attention to safety during operation. Note: 1. This model outputs high-frequency AC, so the lead cannot be too long. The transformer can be removed and connected to the primary end for extension, or directly extended at the power supply end 2. The power supply must be provided within the rated voltage range to function properly! If the voltage is too low, the module will be under voltage and stop working. Do not reverse or overpressure, as it may damage the module and even cause the capacitor to explode! 3. This product poses a certain risk to non professional personnel and must be operated strictly in accordance with electrical specifications! Product List: 2X high-voltage module Shipping Feedback Payment Return policy Contact us Shipping 1.We only ship to the confirmed address provided by eBay. please make sure your ebay address is 100% matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand. 2.Orders will be processed instantly and dispatched within 1-2 business days except hoilday, so we do NOT accept any email/message note after you place orders. 3. All package need to wait 30 days , Please take care it.Less than 30 days,we can't take a refund . Feedback 1.We greatly appreciate your POSITIVE feedback. Please do NOT leave negative feedback without asking for help. 2.Please DON'T leave negative or neutral feedback if you haven't received item in 30 days, because we have mentioned the shipping time repeatedly. Payment 1.We accept PayPal payment ONLY, and must be received within 5 days from the date of purchase. 2. It is easy and safe for you to pay by credit cards, debit cards, bank transfers and PayPal account balances. 3.Buyers are responsible for import duties,custom fees and taxes, if any, please check your country. Return policy 1.We believe our items are so outstanding. We are convinced you will be happy with your Purchase. 2. If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund or resend the item to you after the returned item arrived at our warehouse. 3. Please include your eBay ID and item number with any email requests. Contact us 1. If you have any questions, please feel free to email our service specialists. 2.Just contact us using the " Ask the seller a question" link on eBay. 3.Our aim is to provide Top Level Customer Service, normally so we will try our best to solve any problem. DC12V High Frequency High Voltage Generator Inverter Boost Arc Ignition Coil US Product features: 1. This driver board adopts H-bridge 4-transistor MOS variable frequency resonant topology technology, with high driving efficiency and high power; 2. Low heat generation without the need for a radiator; 3. The arc striking distance is 1cm~2cm, which allows for direct arc striking without the need for arc pulling; 4. The orange yellow flame arc can melt copper wire at a temperature of around 1200 degrees, with a wide range of applications; 5. The arc temperature is high, which can directly melt fine copper wires, iron wires, sparks, and ignite various gases, alcohol, gasoline, diesel, plastic, paper, etc. Specification parameters: Power supply voltage range: 7-15V Suggested power supply voltage: 12V Full load power: 50W Input current:<2A Output voltage: 15KV~20KV Output current: 5mA~15mA Circuit board size: 2 * 4.3cm Overall size: 2 * 6cm Overall height: 2.5cm Instructions for use: Arc striking distance of 1cm~2cm (direct arc striking, no need to pull the arc. If the arc has already started but is not obvious and cannot be ignited, the electrode distance can be brought closer) When the continuous working time exceeds 5 minutes at 9V or above, a fan needs to be installed next to the transformer, This product has no casing (the transformer part has been sealed), please pay attention to safety during operation. Note: 1. This model outputs high-frequency AC, so the lead cannot be too long. The transformer can be removed and connected to the primary end for extension, or directly extended at the power supply end 2. The power supply must be provided within the rated voltage range to function properly! If the voltage is too low, the module will be under voltage and stop working. Do not reverse or overpressure, as it may damage the module and even cause the capacitor to explode! 3. This product poses a certain risk to non professional personnel and must be operated strictly in accordance with electrical specifications! Product List: 2X high-voltage module Shipping Feedback Payment Return policy Contact us Shipping 1.We only ship to the confirmed address provided by eBay. please make sure your ebay address is 100% matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand. 2.Orders will be processed instantly and dispatched within 1-2 business days except hoilday, so we do NOT accept any email/message note after you place orders. 3. All package need to wait 30 days , Please take care it.Less than 30 days,we can't take a refund . Feedback 1.We greatly appreciate your POSITIVE feedback. Please do NOT leave negative feedback without asking for help. 2.Please DON'T leave negative or neutral feedback if you haven't received item in 30 days, because we have mentioned the shipping time repeatedly. Payment 1.We accept PayPal payment ONLY, and must be received within 5 days from the date of purchase. 2. It is easy and safe for you to pay by credit cards, debit cards, bank transfers and PayPal account balances. 3.Buyers are responsible for import duties,custom fees and taxes, if any, please check your country. Return policy 1.We believe our items are so outstanding. We are convinced you will be happy with your Purchase. 2. If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund or resend the item to you after the returned item arrived at our warehouse. 3. Please include your eBay ID and item number with any email requests. Contact us 1. If you have any questions, please feel free to email our service specialists. 2.Just contact us using the " Ask the seller a question" link on eBay. 3.Our aim is to provide Top Level Customer Service, normally so we will try our best to solve any problem.
