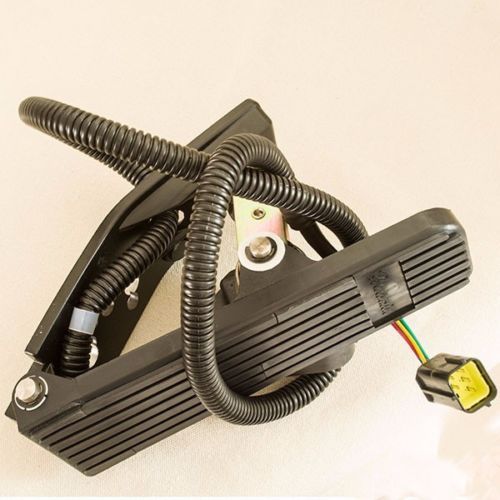

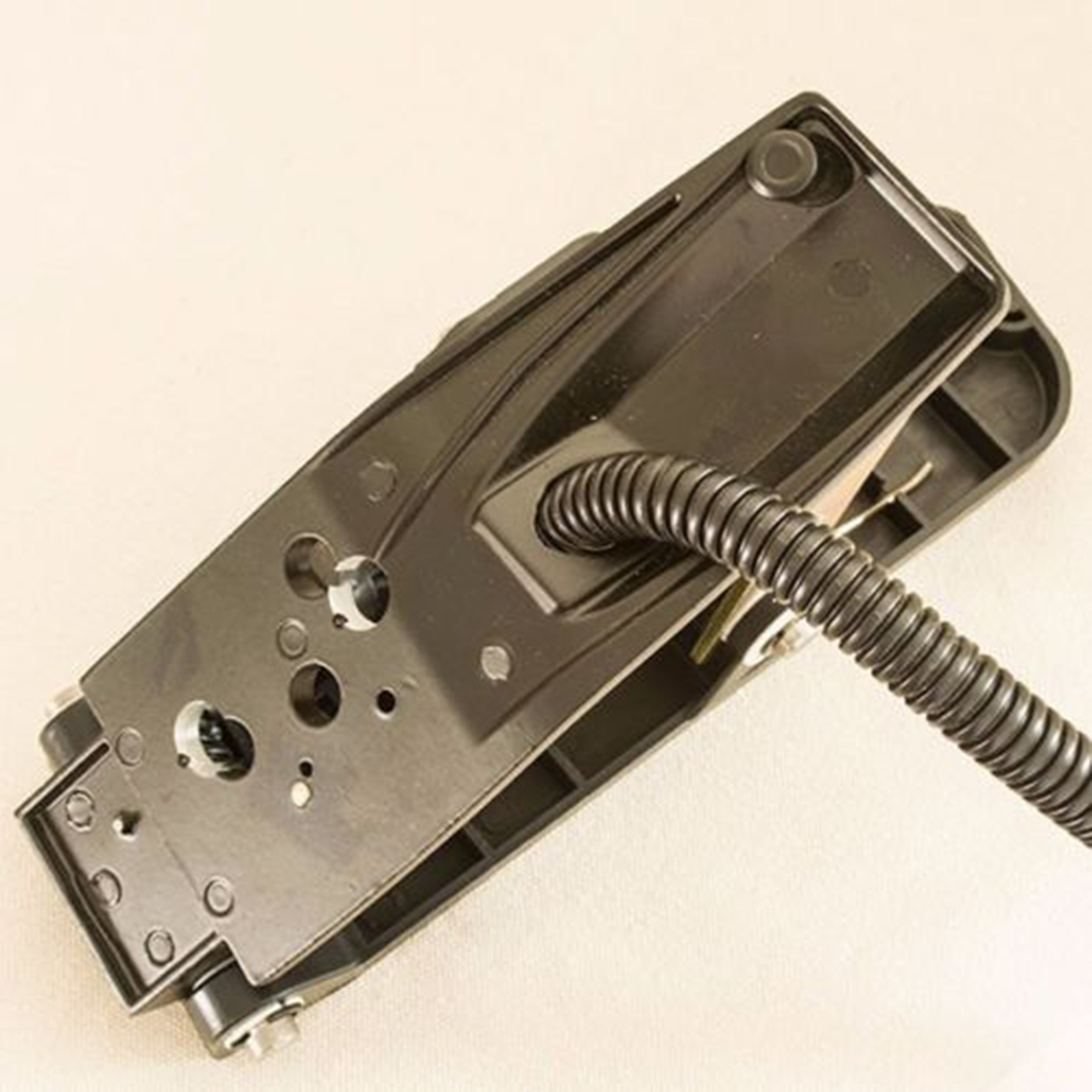

36-80V Hall-Effect Foot Pedal Speed Controller 0-5V Throttle

$ 87.12

MPN: Does not apply Model: HXJS-4805 Application: Stacker, forklift trucks, trucks,Golf Cart gtin13: Does not apply Brand: Hall UPC: Does not apply

Description

Hall-Effect Throttle Electric Vehicle Speed Signal Device Wide Input Voltage 36-80V DC Including Installation Kit & Mating Connector New in Box Description: HXJS-4805 throttle uses the technology of non-contact sensor. HXJS-4805 is compatible with controllers CURTIS, SEVECON, DANAHER, BOSCH, SIEMENS VDO, DELPHAI, WOODWARD Governors. SPECIFICATIONS: Model: HXJS-4805 Input voltage (volt): 36V-80V±2% DC Signal output: 0.2-4.9V ± 0.1V Water-proof connector Installation kit is included Mating connector is included Net weight: 1.0 kg The "Throttle Switch" is a built-in “limit type” microswitchwhich is an electro-mechanical device, detects the position of the rotating shaft of throttle: Idle status: switch off (normally open) Pedal stepped-down: switch on The "Throttle Switch" is useful for redundant safety: High pedal lockout to prevent unintentional acceleration Switching controller key switch Engaging the main contactor Depending on application purposes, there are multiple wiring methods for connecting the HXJS-4805 throttle to a motor controller or 0-5V signal receiver (for example, an electric proportional valve). In same applications, the “Throttle Switch” may be left to be unconnected. Connector Terminals' Definition:
