Aluminum Case Resistor 10W 100 Ohm Wirewound for LED Converter Post 10W100RJ

Description

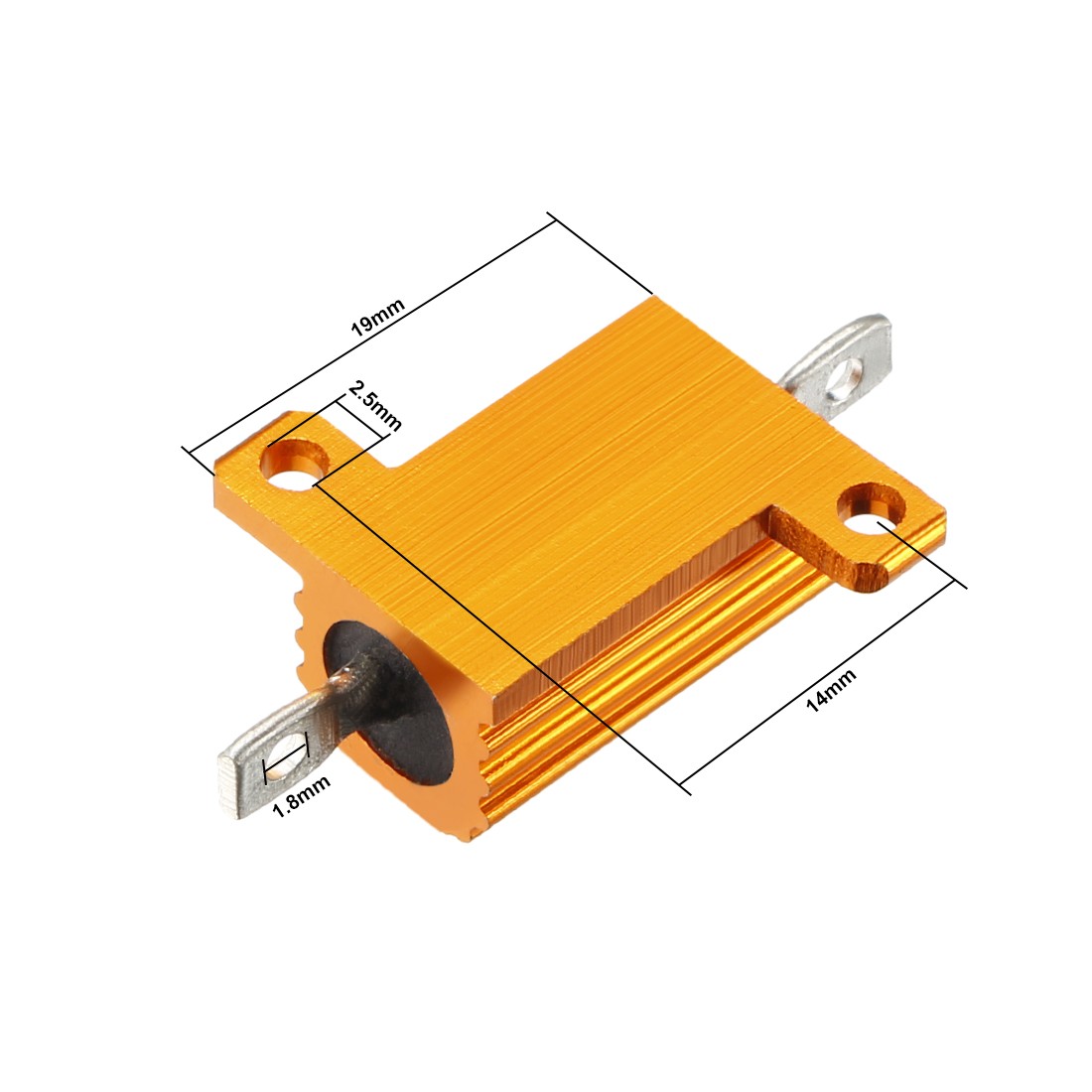

Document 10 Wattage and 100 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range.Aluminum Housed. An insulated cover on the wounded wires would block out the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case.This 10W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built.Board length 3/4 inches(19mm) and two rods with 1.8mm hole for a soldering connection. Dia. 2.5mm antisymmetric anchoring hole for holding, which will fit #2 Screws(or M2.3 nuts)Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc. Main Body Length: 1.9 cm/ 0.75 inchesPower: 10 WattageRated Resistance: 100 RTolerances: 5%(J)Connection Type: Rod terminals with holeRod Length: 7.7mm/0.3 inchesScrew Hole: 2.5mm(Fit #2 or M2.3 nuts)Distance between screw hole: 14mmWeight: 6g/0.15 OzMaterials: Nickel alloys Wire Wound Resistor with Aluminum CaseColor: Gold Package Content:1 x 10W100R Aluminum Housed Resistor Aluminum Case Resistor 10W 100 Ohm Wirewound for LED Converter Post 10W100RJ 10 Wattage and 100 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range. Aluminum Housed. An insulated cover on the wounded wires would block out the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case. This 10W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built. Board length 3/4 inches(19mm) and two rods with 1.8mm hole for a soldering connection. Dia. 2.5mm antisymmetric anchoring hole for holding, which will fit #2 Screws(or M2.3 nuts) Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc. Main Body Length: 1.9 cm/ 0.75 inches Power: 10 Wattage Rated Resistance: 100 R Tolerances: 5%(J) Connection Type: Rod terminals with hole Rod Length: 7.7mm/0.3 inches Screw Hole: 2.5mm(Fit #2 or M2.3 nuts) Distance between screw hole: 14mm Weight: 6g/0.15 Oz Materials: Nickel alloys Wire Wound Resistor with Aluminum Case Color: Gold Package Content: 1 x 10W100R Aluminum Housed Resistor Hot Item Payment 1.We accept eBay payment . 2.Payment must be received within 7 business days of auction closing. Shipping 1.We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay. 2.Items will be shipped within 1-3 business day when we received payment. 3.Delivery time depends on destination and other factors. Description Policy Aluminum Case Resistor 10W 100 Ohm Wirewound for LED Converter Post 10W100RJ 10 Wattage and 100 Ohm, 5% tolerance. Wire Wound Resistor owns high stability and accuracy. Moreover, it was used for various application because of the wide resistance range. Aluminum Housed. An insulated cover on the wounded wires would block out the heat, which promises the high performance of a resistor. Hence, the cooling job was achieved by aluminum case. This 10W resistor formed with qualified copper, nickel, and aluminum. With the compact structure and heat dissipation design, a capability of overload has been built. Board length 3/4 inches(19mm) and two rods with 1.8mm hole for a soldering connection. Dia. 2.5mm antisymmetric anchoring hole for holding, which will fit #2 Screws(or M2.3 nuts) Reliable. Problems like the flush LED would have a perfect solution, or you can use it in any AC DC circuits, converter, inverter, motor speed control, drivers, etc. Main Body Length: 1.9 cm/ 0.75 inches Power: 10 Wattage Rated Resistance: 100 R Tolerances: 5%(J) Connection Type: Rod terminals with hole Rod Length: 7.7mm/0.3 inches Screw Hole: 2.5mm(Fit #2 or M2.3 nuts) Distance between screw hole: 14mm Weight: 6g/0.15 Oz Materials: Nickel alloys Wire Wound Resistor with Aluminum Case Color: Gold Package Content: 1 x 10W100R Aluminum Housed Resistor Hot Item Payment 1.We accept eBay payment . 2.Payment must be received within 7 business days of auction closing. Shipping 1.We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay. 2.Items will be shipped within 1-3 business day when we received payment. 3.Delivery time depends on destination and other factors.
